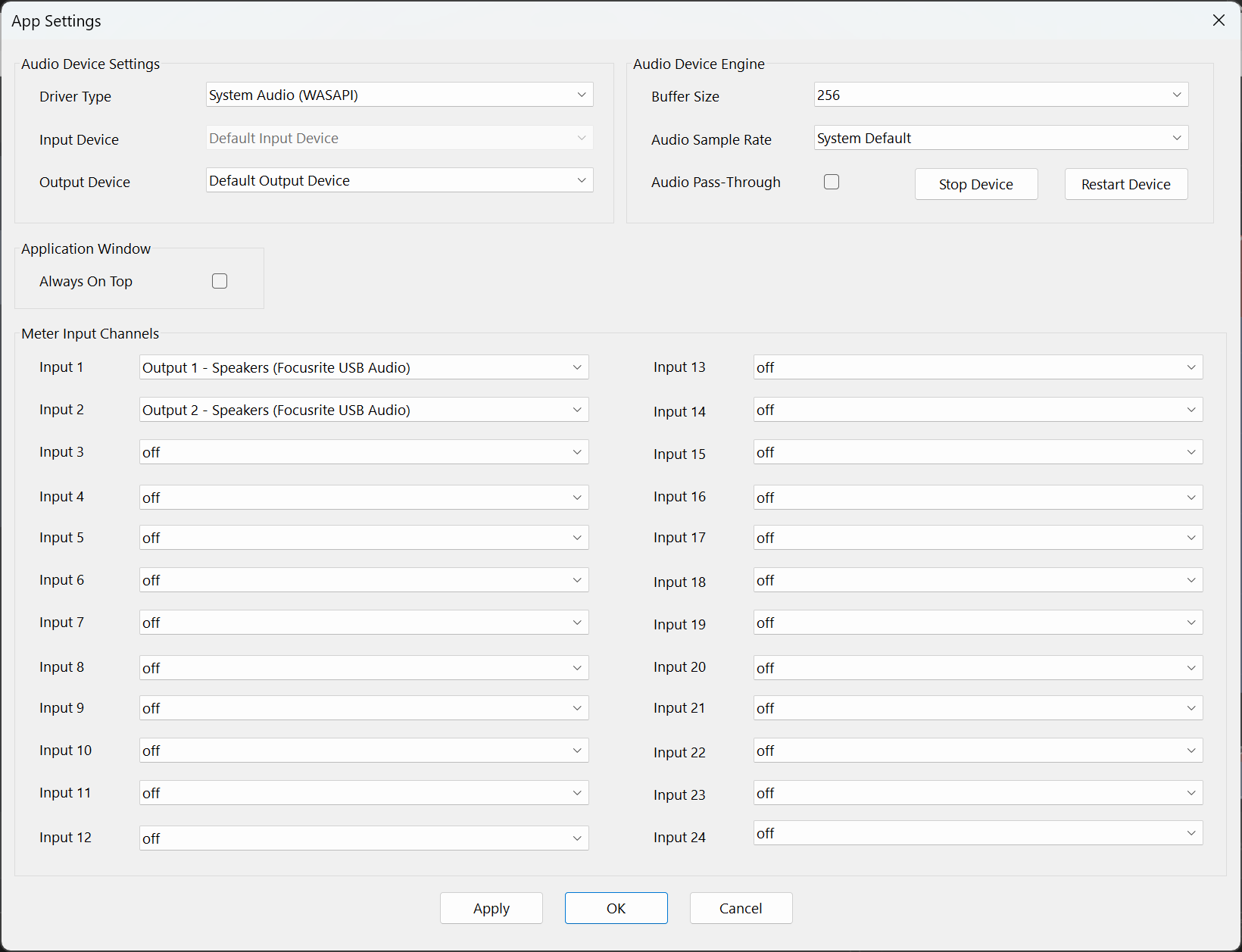

Application Settings

To access application settings to to File->App Settings

Audio Device Settings

You can set here the audio device that meter should monitor.

There are 3 main types of settings:

• None (audio driver is disabled)

• Analyze Audio Inputs (ASIO, DirectSound, Core Audio)

• Analyze System Audio (WASAPI, Core Audio)

Audio Device Engine

• Buffer Size: It sets the internal buffer size for the meter.

• Audio Sample Rate: It is best to keep it at default so that the meter follows the current system sample rate

• Audio Pass-Through: If enabled, meter will pass input audio to the outputs

Meter Input Channels

Here you should select the inputs for the meter. The order of inputs will matter. For example, if you want to measure stereo input, set Input 1 to left channels and Input 2 to right channel.

Application Window

Enable this to make meter always on top of other windows. This is useful if you want to have meter always visible while working on something else.
